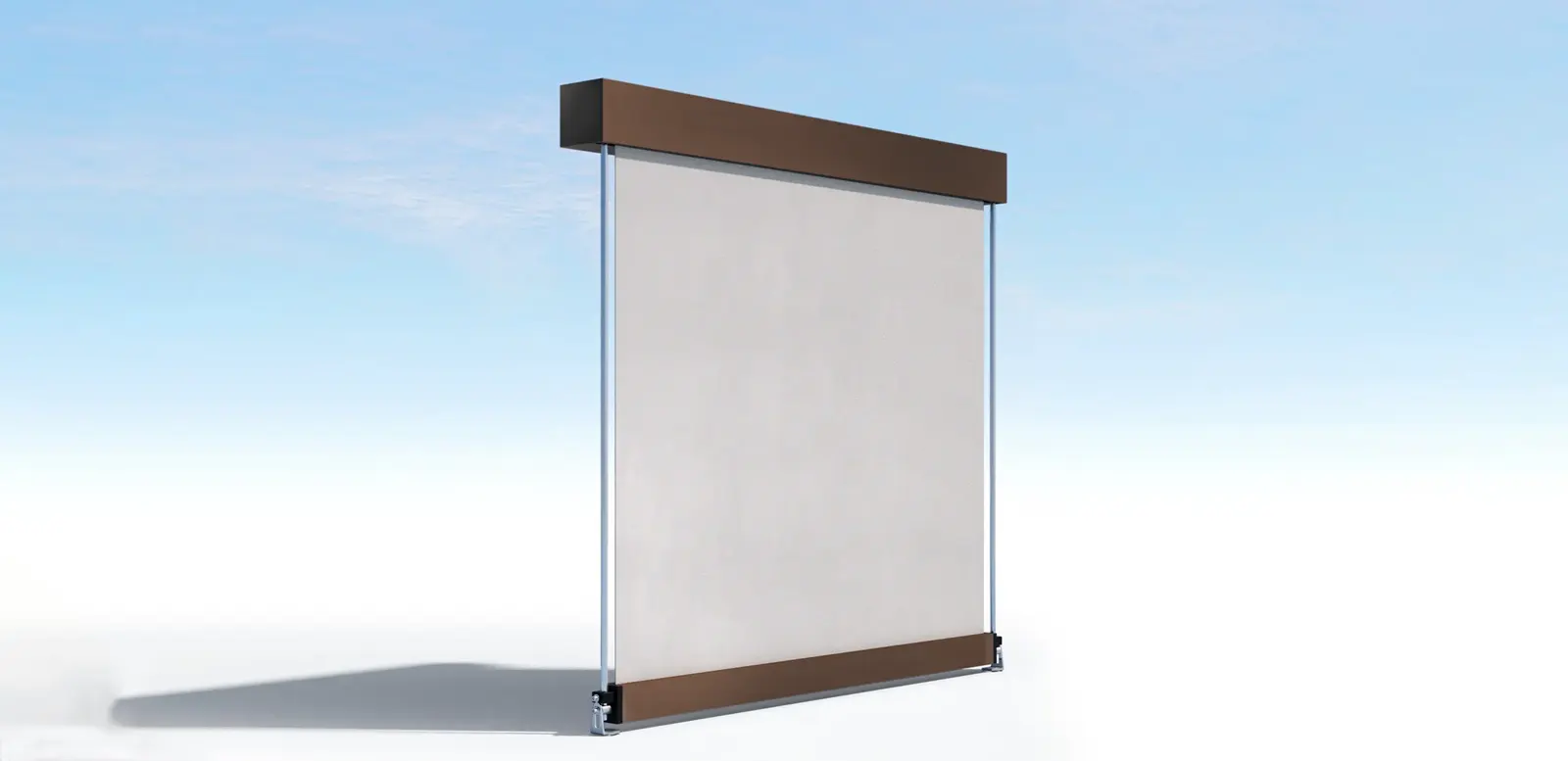

ROD OR CABLE VERTICAL AWNING

Within our specialization in vertical awnings, the rod or cable guiding system stands out for its minimalist aesthetic and high functionality.

The perfect solution for facades where effective solar protection is desired without bulky structural elements, allowing the awning to slide smoothly in a vertical direction.

At Siplan, we manufacture these systems under the highest quality standards, utilizing premium materials such as stainless steel to guarantee exceptional performance even under the most demanding environmental conditions.

Main features

GUIDING OPTIONS AND MAXIMUM DIMENSIONS

This vertical system offers two guiding options that adapt to the dimensions and aesthetic needs of each architectural project. Both options strictly comply with the European EN-13561:2015 standard (Class 1, Class 2 and Class 3 wind resistance).

ROD GUIDING SYSTEM

Ideal for installations looking for a solid and visually linear guide:

Maximum Dimensions: Allows for covering surfaces up to 5.00 m in width by 3.00 m in vertical drop.
Material: AISI 316 stainless steel rod, renowned for its maximum resistance against oxidation.

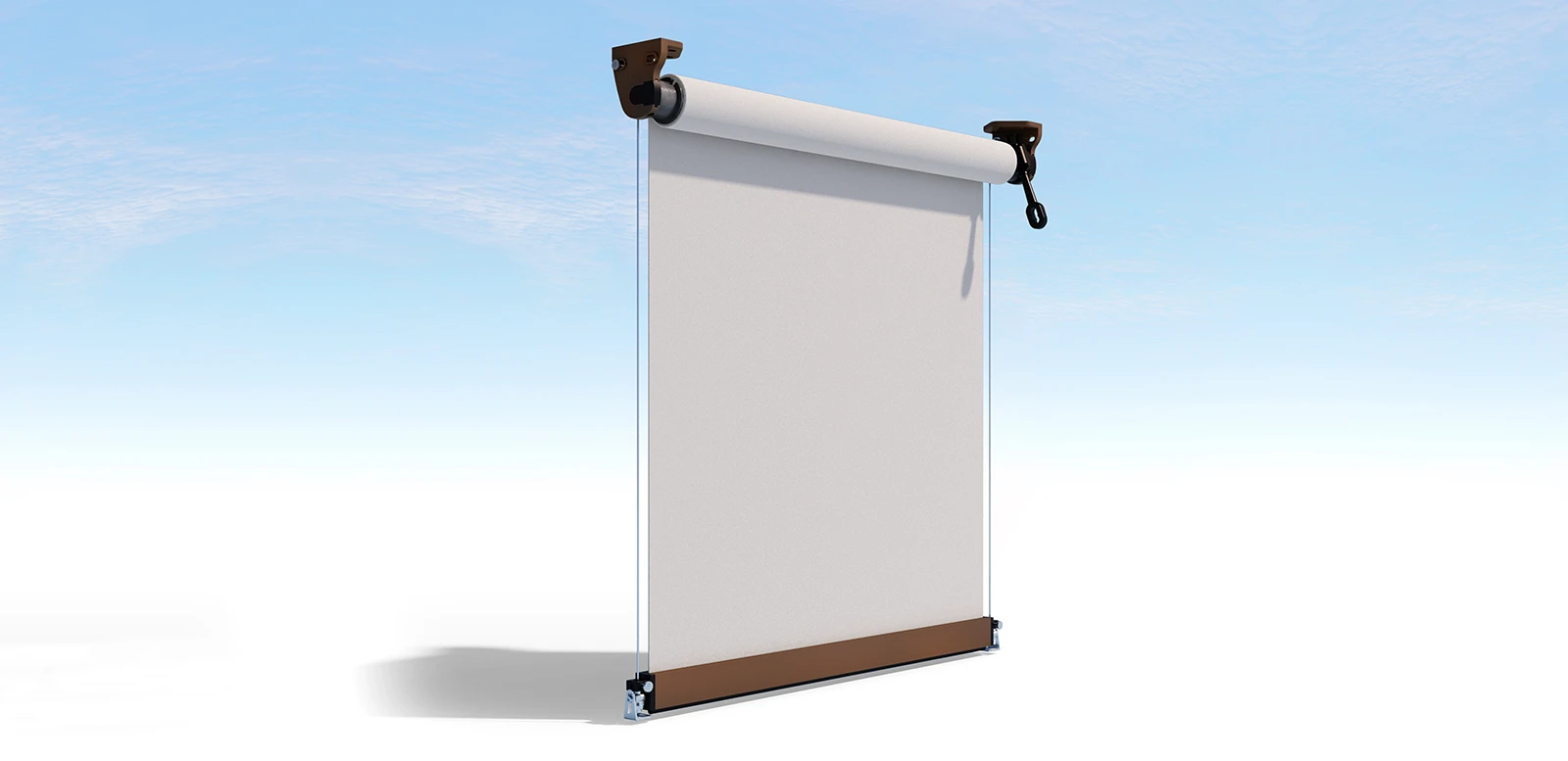

CABLE GUIDING SYSTEM

The preferred option for large dimensions thanks to its visual lightness and flexibility.

Maximum Dimensions: Reaches up to 5.00 m in width by 5.00 m in vertical drop, making it the solution with the greatest coverage in height.
Material: AISI 316 stainless steel cable, guaranteeing durability and constant tension.

PREMIUM MATERIALS: TOTAL CORROSION PROTECTION

As manufacturers, at Siplan we not only look after the design but also the longevity of each component. This vertical system is built to endure:

Lacquered Aluminum: All profiles and accessories follow the most demanding standards of corrosion protection.
Stainless Steel Hardware: We use A2 70 quality hardware, ensuring that every joint ensures long-term durability.
Wind Resistance: Certified in Class 1, with the possibility of reaching Class 2 and Class 3, depending on the configuration and surface area of the canvas.
Versatile Fastening: Engineered for a simple and robust installation on both walls and ceilings.

Technical summary

Maximum dimensions

5 m width × 3 m drop (Rod)

5 m width × 5 m drop (Cable)

Wind Resistance:

Class 1 · 28 km/h

Class 2 · 38 km/h

Class 3 · 49 km/h

(According to UNE EN 13561:2015/AC standard)

Operation:

Manual and motorized

Integration and vertical system maintenance

The discreet nature of the rods and cables allows this awning to can be integrated with cassette systems or to be installed independently on windows and balconies. Furthermore, its compatibility with other enclosures makes it ideal for complementing veranda installations.

If you need spare parts, components, or wish to consult the full range of available colors, you can access our catalogue or contact us to receive personalized technical advice.

Downloads

TECHNICAL DATA SHEET

3MB

AVAILABLE COLOURS

White 9016

Silver 9006

Grey 7012

Grey 7016 Textured

Grey 7022

Beige 1015

Green 6005

Green 6009
